GUITAR MACHINE HEADS
Request a quote → M-7095
M-7095
M-7095
Loading 3D model…
Loading 3D model…
Description

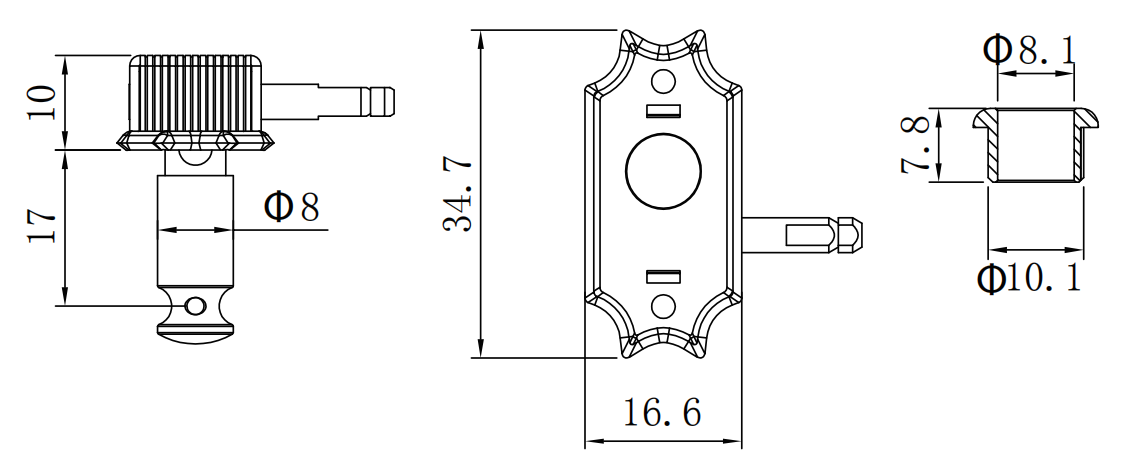

M-7095 is a large-post sealed machine head with φ8 mm post, 17 mm post length, φ10.1 mm headstock bore.
Tuning machine specs
- Post diameter φ8 mm
- Post length 17 mm (0.669 in)
- Housing width 16.6 mm (0.654 in)
- Housing depth 34.7 mm (1.366 in)
- Housing height 10 mm (0.394 in)
- Bushing height 7.8 mm (0.307 in)
- Bushing outer diameter φ10.1 mm
- Mount style Two-screw plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Large-post sealed machine head
- Two-screw plate mount
About measurements
- Post diameter
-
8 mm (0.315 in)
Diameter of the string post where the string is wound.
Configurations
Gear ratio
15:1 18:1
