Description

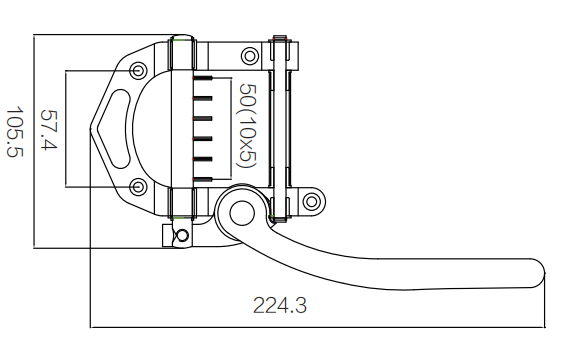

BG-6001 is a Bigsby-style 6-string vibrato tailpiece with 10 mm string spacing (50 mm spread), 224.3 mm overall length, and 57.4 mm mount spacing.
Vibrato tailpiece specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Overall length 224.3 mm (8.831 in)
- Overall width 105.5 mm (4.154 in)
- Mount spacing 57.4 mm (2.26 in)
Hardware
- Material Cast aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Roller bar string anchor
- Surface-mount vibrato arm
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
57.4 mm (2.26 in)
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the tailpiece.
