BANJO PARTS
Request a quote → BJ-007A
BJ-007A

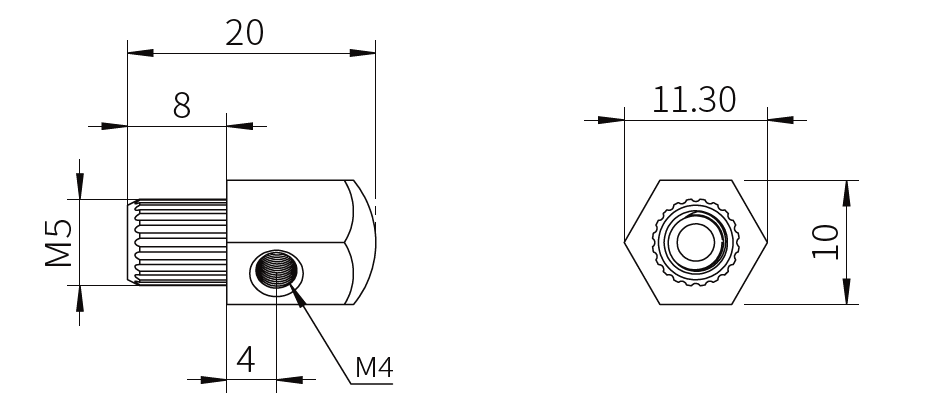

Technical drawingBJ-007A
Description
Knurled coordinator rod thumb-nut with M5 stud thread, M4 side set-screw, 11.3 mm hex width and 20 mm overall length.
Banjo hardware specs
- Overall width 11.3 mm (0.445 in)
- Overall length 20 mm (0.787 in)
- Thread M5 stud; M4 side set-screw
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled head for tool-free hand tightening
- M4 side set-screw for secure lock
