BANJO PARTS
Request a quote → BJ-017B
BJ-017B

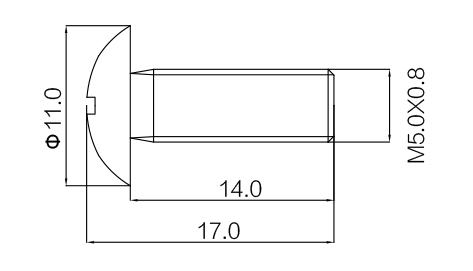

Technical drawingBJ-017B
Description
Short round-head bolt with Φ11 mm domed head, M5.0×0.8 thread, 14 mm shaft and 17 mm overall length.
Banjo hardware specs
- Outer diameter φ11 mm
- Overall length 17 mm (0.669 in)
- Shank length 14 mm (0.551 in)
- Thread M5.0×0.8
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact 17 mm overall length, 2 mm shorter than BJ-017A
- M5×0.8 fine-pitch thread
