Knobs
Request a quote → C-1010
C-1010
C-1010
Loading 3D model…
Loading 3D model…
Description

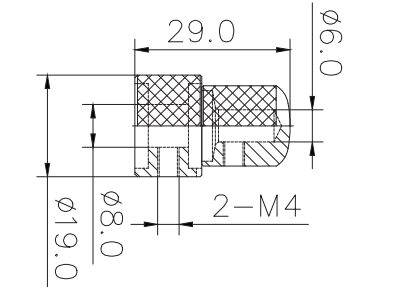

Knurled shaft adapter Φ19.0 mm × 29.0 mm with Φ8.0 / Φ6.0 mm stepped bore and 2-M4 set screws.
Knob / cap specs
- Outer diameter φ19 mm
- Inner diameter φ8 mm
- Overall height 29 mm (1.142 in)
- Hole diameter φ6 mm
- Thread 2-M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled stepped cylindrical profile
- Two M4 threaded mounting holes
