Knobs
Request a quote → C-2001-V
C-2001-V

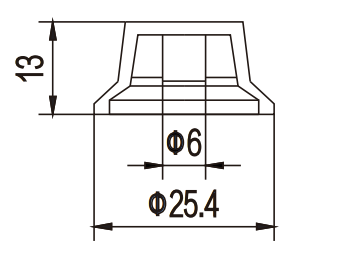

Technical drawingC-2001-V
Description
Bell-style pot knob Φ25.4 mm base × 13.0 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ25.4 mm
- Body height 13 mm (0.512 in)
- Overall height 13 mm (0.512 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with tapered body
- Splined 6 mm pot shaft bore
