Description

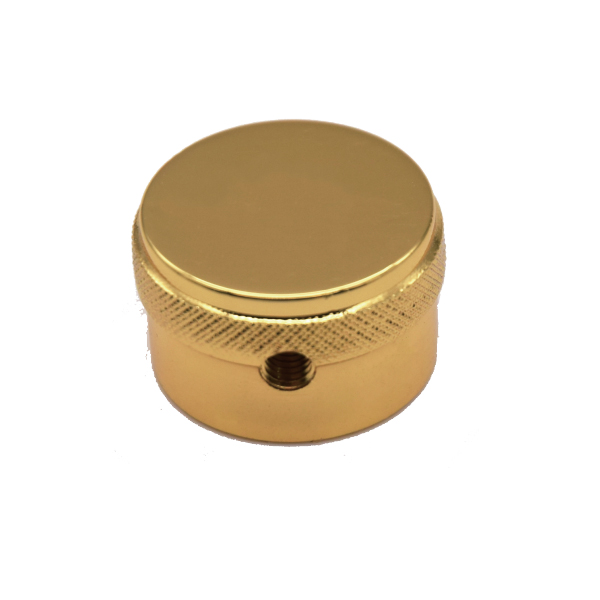

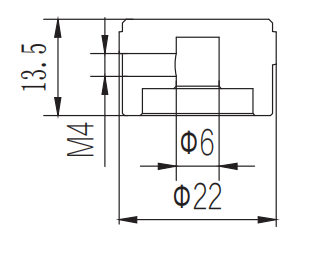

Cylindrical knob Φ22 × 13.5 mm with Φ6 bore and M4 set screw.
Knob / cap specs
- Outer diameter φ22 mm
- Overall height 13.5 mm (0.531 in)
- Hole diameter φ6 mm
- Thread M4 set screw
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flat base with stepped top
- M4 side set screw intersects Φ6 shaft bore
