Strap Buttons
Request a quote → E-1007
E-1007
Technical drawingE-1007
Description

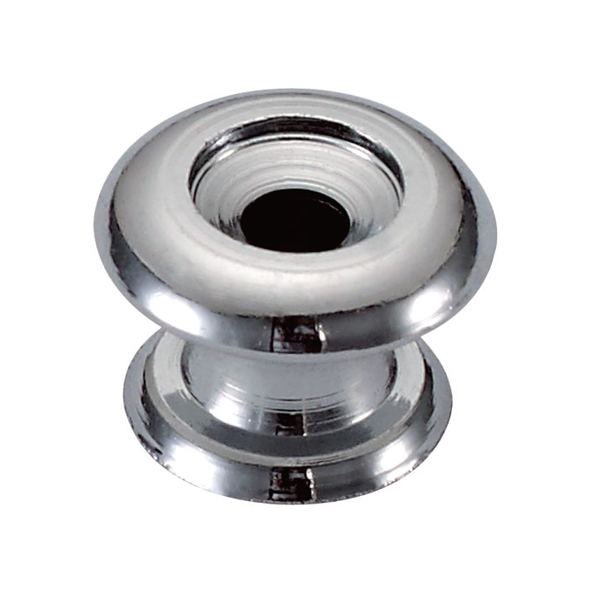

Metal strap button with Φ13 mm top, Φ10 mm base flange, Φ3.4 mm bore, and 9 mm overall height.
Strap button / electronics specs
- Outer diameter φ13 mm
- Bottom width 10 mm (0.394 in)
- Overall height 9 mm (0.354 in)
- Hole diameter φ3.4 mm
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Spool profile with curved waist section
- Countersunk top bore for screw mounting
