Strap Buttons
Request a quote → E-1010

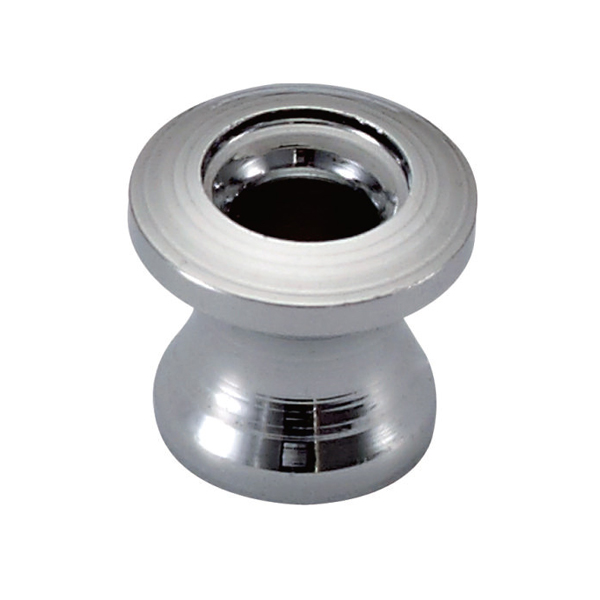

E-1010
Technical drawingE-1010
Description
Metal strap button with Φ10 mm top, Φ8 mm base flange, Φ3.5 mm bore, and 9 mm overall height.
Strap button / electronics specs
- Outer diameter φ10 mm
- Bottom width 8 mm (0.315 in)
- Overall height 9 mm (0.354 in)
- Hole diameter φ3.5 mm
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact spool shape with concave sides
- Countersunk Φ3.5 mm central through-hole
