E-1024
Technical drawingE-1024
Description

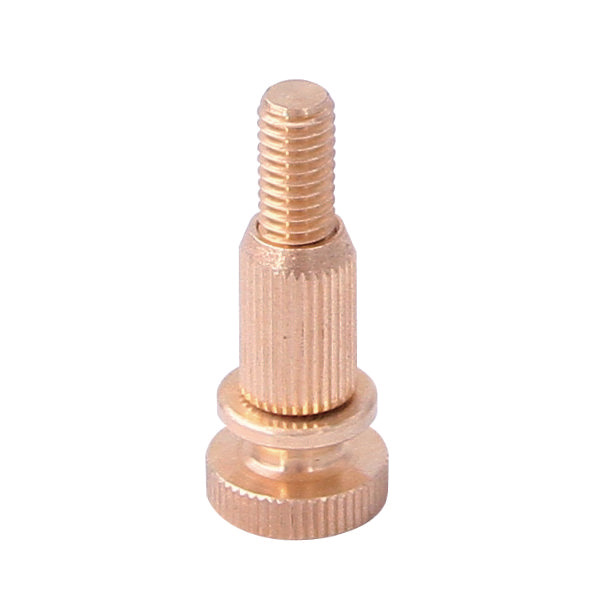

Knurled thumb screw 35 mm overall with Φ14 mm base, 9.5 mm head height, M6×1.0 thread, and matching press-fit insert.
Strap button / electronics specs
- Outer diameter φ14 mm
- Body height 9.5 mm (0.374 in)
- Overall height 35 mm (1.378 in)
- Thread M6×1.0
- Reference Insert: top Φ6.7 mm, body Φ7.3 mm, flange Φ9 mm
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled Φ14 mm base for tool-free tightening
- Stepped press-fit insert with M6×1.0 internal thread
About measurements
- Mount hole spacing
-
Insert: top Φ6.7 mm, body Φ7.3 mm, flange Φ9 mm
Center-to-center distance between mounting holes on the bridge plate.
