Strap Buttons
Request a quote → E-1025
E-1025

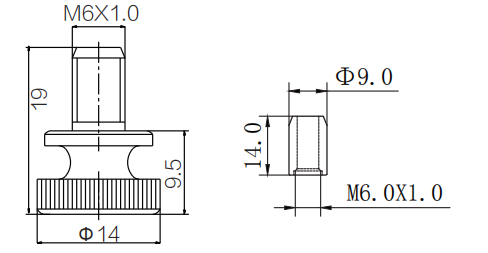

Technical drawingE-1025
Description
Strap button with Φ14 mm base, 9.5 mm body height, 19 mm overall height, M6×1.0 stud, and matching Φ9.0×14.0 mm M6.0×1.0 sleeve.
Strap button / electronics specs
- Outer diameter φ14 mm
- Bottom width 14 mm (0.551 in)
- Body height 9.5 mm (0.374 in)
- Overall height 19 mm (0.748 in)
- Thread M6×1.0
- Reference Matching sleeve Φ9.0 mm OD × 14.0 mm height, M6.0×1.0 internal thread
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled cylindrical base section
- Matching threaded cylindrical sleeve shown at Φ9.0×14.0 mm
About measurements
- Mount hole spacing
-
Matching sleeve Φ9.0 mm OD × 14.0 mm height, M6.0×1.0 internal thread
Center-to-center distance between mounting holes on the bridge plate.
