Strap Buttons
Request a quote → E-1030
E-1030

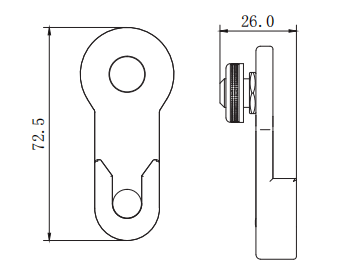

Technical drawingE-1030
Description
Vertical strap-lock part 72.5 mm height and 26.0 mm depth with top mounting hole and bottom hook slot.
Strap button / electronics specs
- Overall length 26 mm (1.024 in)
- Overall height 72.5 mm (2.854 in)
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rounded top with central mounting hole and bottom U-shaped hook slot
- Side-mounted knurled button assembly on upper plate
