Floyd Rose Tremolos
Request a quote → FRTES2
FRTES2

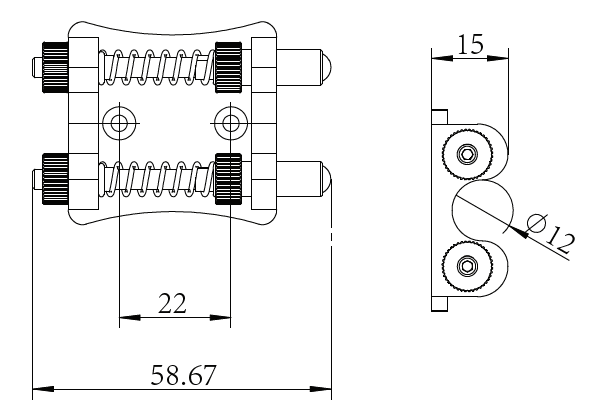

Technical drawingFRTES2
Description
FRTES2 dual-spring tremolo stabilizer, 58.67 mm wide × 15 mm tall, 22 mm two-hole mount spacing, φ12 mm central bore.
Tremolo stabilizer specs
- Overall width 58.67 mm (2.31 in)
- Overall length 15 mm (0.591 in)
- Hole diameter φ12 mm
- Mount spacing 22 mm (0.866 in)
- Reference Center-to-center distance between the two mounting holes.
Hardware
- Material Steel / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Dual spring-loaded tension rods with four knurled adjusters
- Two-hole base plate on 22 mm centers
About measurements
- Mount hole spacing
-
22 mm (0.866 in)
Center-to-center distance between mounting holes on the bridge plate.
