Description

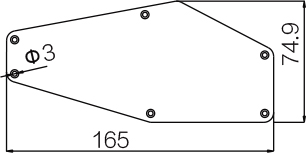

HC-2001 control plate, 165 × 74.9 mm hexagonal plate, φ3 mm 6-hole mount.
Control plate specs
- Overall width 165 mm (6.496 in)
- Overall length 74.9 mm (2.949 in)
- Hole diameter φ3 mm
- Reference Six perimeter mounting holes (center-to-center spacing not dimensioned on drawing).
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Hexagonal outline 165 mm × 74.9 mm with angled top corners
- Six φ3 mm mounting holes
About measurements
- Mount hole spacing
-
Six perimeter mounting holes (center-to-center spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
