HE-1018
Technical drawingHE-1018
Description

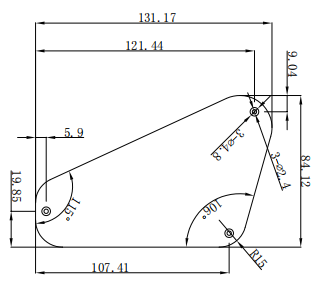

HE-1018 cavity cover, 131.17 × 84.12 mm with three countersunk holes (φ2.4 / φ4.8 mm).
Pickguard specs
- Overall width 131.17 mm (5.164 in)
- Overall length 84.12 mm (3.312 in)
- Mount hole diameter φ2.4 mm
- Layout reference Three countersunk holes φ2.4 mm pilot / φ4.8 mm head; bottom-right corner R15 mm; angles 115° / 106°.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Irregular quadrilateral outline
- Three countersunk mounting holes
About measurements
- Mount hole spacing
-
Three countersunk holes φ2.4 mm pilot / φ4.8 mm head; bottom-right corner R15 mm; angles 115° / 106°.
Center-to-center distance between mounting holes on the bridge plate.
