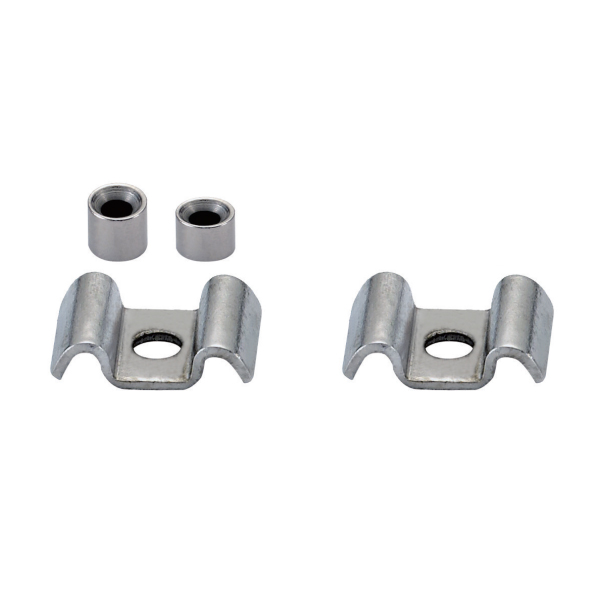

String Mounting Ferrules
Request a quote → KB-1007
KB-1007
KB-1007
Loading 3D model…
Loading 3D model…
Description

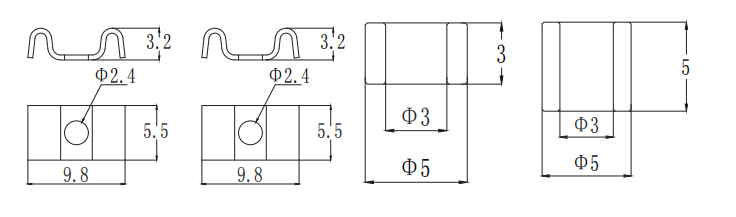

Compact clip 9.8 × 5.5 mm, height 3.2 mm, Φ2.4 hole; spacers Φ5 with 3 / 5 mm heights.
Hardware part specs
- Outer diameter φ5 mm
- Inner diameter φ3 mm
- Overall width 9.8 mm (0.386 in)
- Overall length 5.5 mm (0.217 in)
- Body height 3.2 mm (0.126 in)
- Hole diameter φ2.4 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Small-footprint retainer clip
