KG-1006

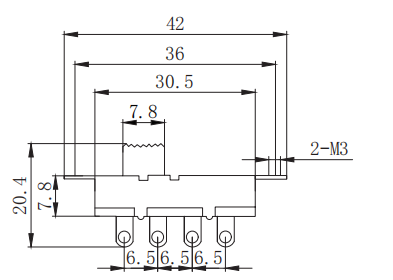

Technical drawingKG-1006
Description
KG-1006 slide switch, 42 × 20.4 mm body with 36 mm mount spacing and four terminals.
Selector switch specs
- Overall width 42 mm (1.654 in)
- Overall height 20.4 mm (0.803 in)
- Mount spacing 36 mm (1.417 in)
- Reference Main body 30.5 × 7.8 mm; slider 7.8 mm wide; four terminals on 6.5 mm pitch; 2× M3 mounting ears.
Hardware
- Material Metal / plastic housing (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Slide actuator
- 2× M3 mounting ears
About measurements
- Mount hole spacing
-
36 mm (1.417 in)
Center-to-center distance between mounting holes on the bridge plate.
