Description

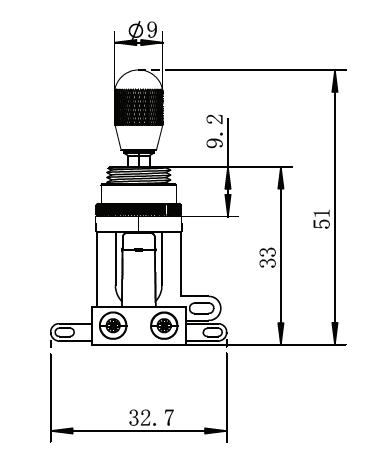

KG-1007 toggle switch, 51 mm overall height, 32.7 mm base width, φ9 mm tip, 9.2 mm threaded bushing.
Selector switch specs
- Outer diameter φ9 mm
- Overall width 32.7 mm (1.287 in)
- Overall height 51 mm (2.008 in)
- Body height 33 mm (1.299 in)
- Reference Threaded bushing 9.2 mm; four solder lugs.
Hardware
- Material Metal / plastic housing (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Toggle selector switch
- Four solder lugs
About measurements
- Mount hole spacing
-
Threaded bushing 9.2 mm; four solder lugs.
Center-to-center distance between mounting holes on the bridge plate.
