L-1011

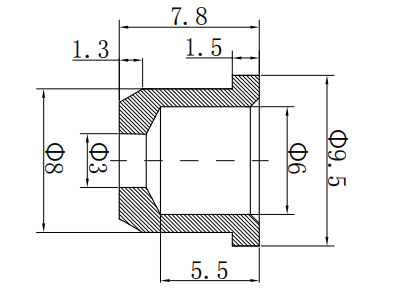

Technical drawingL-1011
Description
L-1011 is a flanged bushing with φ9.5 mm flange, φ6 mm bore, and 7.8 mm overall length.
Bushing / sleeve specs
- Outer diameter φ9.5 mm
- Inner diameter φ6 mm
- Body height 6.3 mm (0.248 in)
- Overall height 7.8 mm (0.307 in)
- Reference Body OD φ8 mm; small bore φ3 mm at opposite end; flange thickness 1.5 mm.
Hardware
- Material Brass / steel / plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Stepped internal taper from φ6 mm bore to φ3 mm exit
- Tapered front end with 1.5 mm thick flange
About measurements
- Mount hole spacing
-
Body OD φ8 mm; small bore φ3 mm at opposite end; flange thickness 1.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
