M-1001

GUITAR MACHINE HEADS

M-1001

M-1001

Request a quote →

M-1001

Description

M-1001 is a sealed-gear machine head with φ6 mm post, 23 mm post length, φ9.7 mm headstock bore.

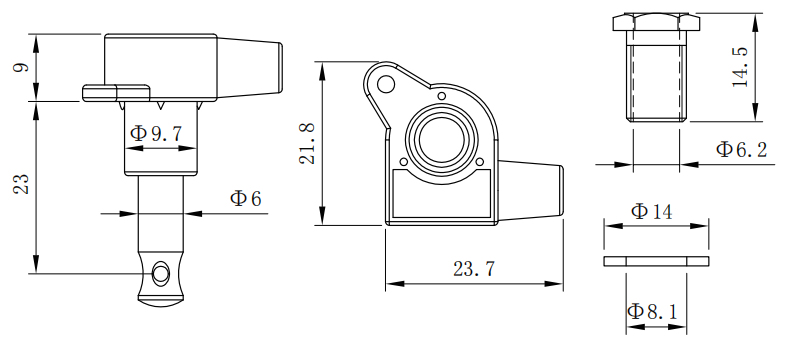

Tuning machine specs

Post diameter φ6 mm
Post length 23 mm (0.906 in)
Headstock bore φ9.7 mm
Housing width 21.8 mm (0.858 in)
Housing depth 23.7 mm (0.933 in)
Housing height 9 mm (0.354 in)
Bushing height 14.5 mm (0.571 in)
Washer outer diameter φ14 mm
Mount style Single-screw mounting tab

Hardware

Material Zinc alloy
Adjustment Tuning adjustment
Finish More colors — see matching swatches

Features

Sealed-gear machine head
Single-screw mounting tab

About measurements

Post diameter

6 mm (0.236 in)

Diameter of the string post where the string is wound.

Headstock bore

9.7 mm (0.382 in)

Recommended headstock hole diameter for the tuner collar.

Configurations
