BASS MACHINE HEADS
Request a quote → MB-3494
MB-3494
MB-3494
Loading 3D model…
Loading 3D model…
Description

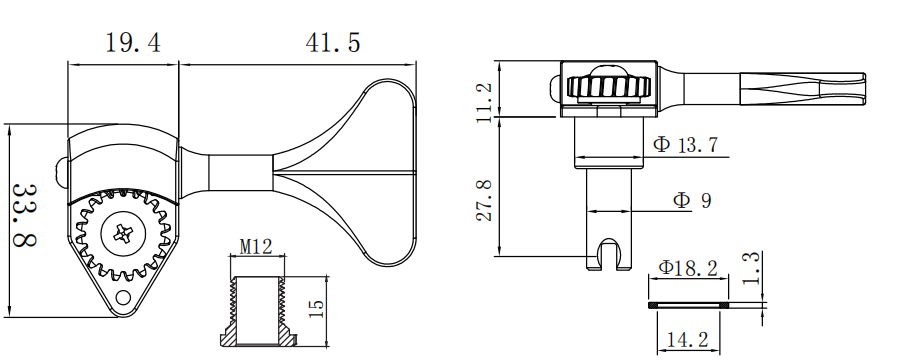

MB-3494 is a bass machine head with φ9 mm post, 27.8 mm post length, φ13.7 mm headstock bore.
Tuning machine specs
- Post diameter φ9 mm
- Post length 27.8 mm (1.094 in)
- Headstock bore φ13.7 mm
- Housing width 19.4 mm (0.764 in)
- Housing depth 33.8 mm (1.331 in)
- Housing height 11.2 mm (0.441 in)
- Bushing height 15 mm (0.591 in)
- Washer outer diameter φ18.2 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Sealed-gear bass machine head
- Single-screw mounting tab
- Clover-leaf button
About measurements
- Post diameter
-
9 mm (0.354 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
13.7 mm (0.539 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
