CLASSIC MACHINE HEADS
Request a quote → N-1362C
N-1362C

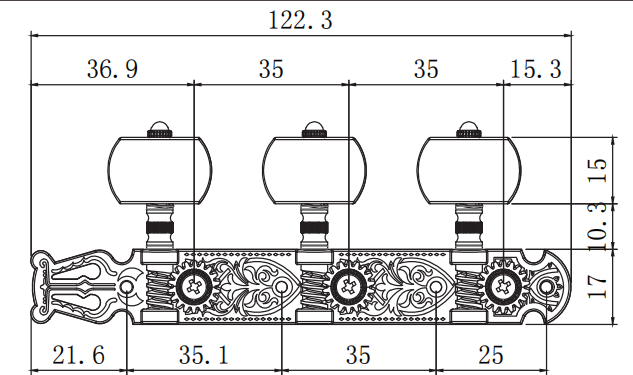

Technical drawingN-1362C
Description
N-1362C 3-on-a-plate classical guitar tuners, 122.3 × 17 mm engraved plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 17 mm (0.669 in)
- Plate length 122.3 mm (4.815 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 21.6 mm from left edge, then 35.1 mm, 35 mm, 25 mm center spacing.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Floral and leaf engraved plate
- Open-gear worm and spur assembly
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
