Guitar Pickups
Request a quote → P-1006
P-1006
P-1006
Loading 3D model…
Loading 3D model…
Description

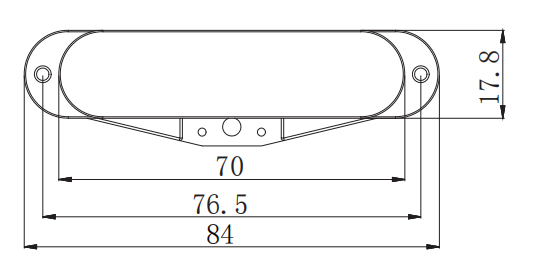

Closed-cover pickup with 84 mm overall length, 17.8 mm body width, and 76.5 mm mount spacing.
Pickup specs
- Overall width 17.8 mm (0.701 in)
- Overall length 84 mm (3.307 in)
- Mount spacing 76.5 mm (3.012 in)
- Reference Body length without tabs 70 mm.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Smooth closed top cover with no visible pole pieces
- Bottom-center triangular tab with three small holes
About measurements
- Mount hole spacing
-
76.5 mm (3.012 in)
Center-to-center distance between mounting holes on the bridge plate.
