Guitar Pickups
Request a quote → P-1007

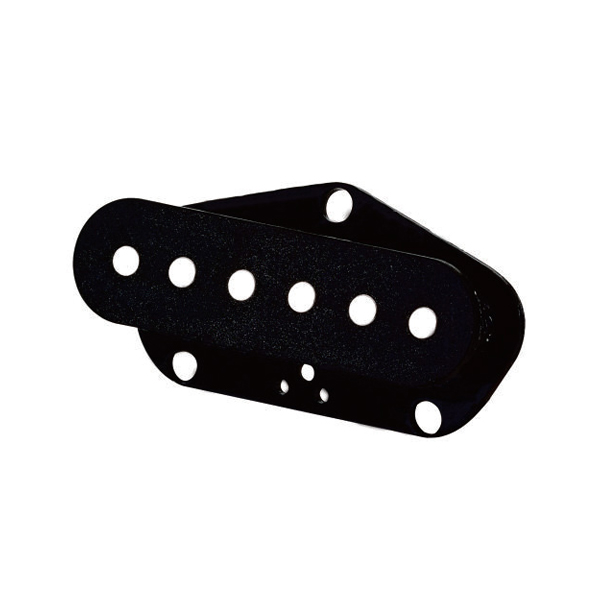

P-1007
P-1007
Loading 3D model…
Loading 3D model…
Description

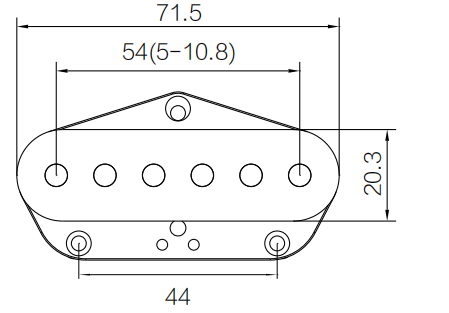

Bridge pickup with 71.5 mm bobbin length, 20.3 mm body width, and 44 mm bottom mount spacing.
Pickup specs
- String count 6-string
- Overall width 20.3 mm (0.799 in)
- Overall length 71.5 mm (2.815 in)
- Mount spacing 44 mm (1.732 in)
- Reference Pole spacing 54 mm (5-10.8); one top and two bottom mounting holes.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Six pole pieces in a single row
- Asymmetric baseplate with three wire eyelets at bottom center
About measurements
- Mount hole spacing
-
44 mm (1.732 in)
Center-to-center distance between mounting holes on the bridge plate.
