Description

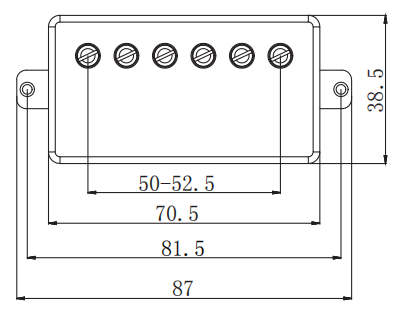

P-3002 is a 6-string covered pickup with a 70.5 × 38.5 mm body, 81.5 mm mount spacing, and 50–52.5 mm pole spacing.
Pickup specs
- String count 6-string
- Overall width 38.5 mm (1.516 in)
- Overall length 87 mm (3.425 in)
- Mount spacing 81.5 mm (3.209 in)
- Reference Overall width including tabs 87 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rectangular metal cover with 6 adjustable screw pole pieces
- Side mounting tabs with one hole each
- Outer pole spacing 50–52.5 mm
About measurements
- Mount hole spacing
-
81.5 mm (3.209 in)
Center-to-center distance between mounting holes on the bridge plate.
