P-KD10

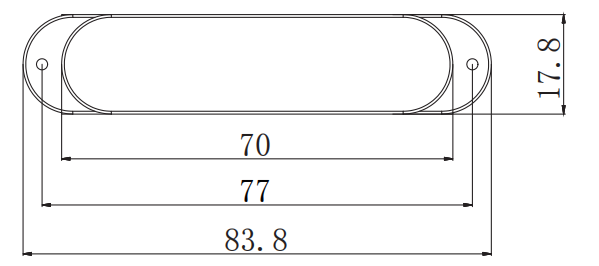

Technical drawingP-KD10
Description
Oval pickup cover, 83.8 × 17.8 mm, 77 mm mount spacing.
Pickup specs
- Overall width 17.8 mm (0.701 in)
- Overall length 83.8 mm (3.299 in)
- Mount spacing 77 mm (3.031 in)
- Reference Center-to-center between end-tab mounting holes.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Elongated oval shape with end mounting tabs
- Inner body width 70 mm
About measurements
- Mount hole spacing
-
77 mm (3.031 in)
Center-to-center distance between mounting holes on the bridge plate.
