P-KD20

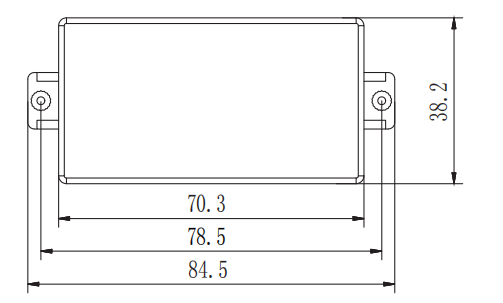

Technical drawingP-KD20
Description
Rectangular pickup cover, 70.3 × 38.2 mm, 78.5 mm mount spacing.
Pickup specs
- Overall width 38.2 mm (1.504 in)
- Overall length 84.5 mm (3.327 in)
- Mount spacing 78.5 mm (3.091 in)
- Reference Center-to-center between side-tab mounting holes.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Solid rectangular cover with rounded corners
- Side mounting tabs; total width 84.5 mm
About measurements
- Mount hole spacing
-
78.5 mm (3.091 in)
Center-to-center distance between mounting holes on the bridge plate.
