MANDOLIN PARTS
Request a quote → TA-002
TA-002
TA-002
Loading 3D model…
Loading 3D model…
Description

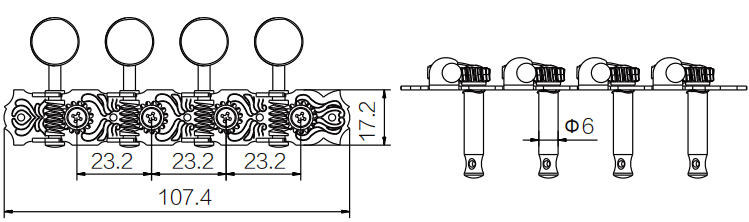

TA-002 4-on-a-plate mandolin tuners, 107.4 × 17.2 mm plate, φ6 mm posts on 23.2 mm centers.
Tuning machine specs
- Post diameter φ6 mm
- Plate width 17.2 mm (0.677 in)
- Plate length 107.4 mm (4.228 in)
- Mount style 4-on-a-plate open gear; round buttons
- Post spacing 23.2 mm (0.913 in)
- Reference Post center spacing 23.2 mm.
Hardware
- Material Zinc alloy / brass (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
23.2 mm (0.913 in)
Center-to-center distance between mounting holes on the bridge plate.
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
