TH-005

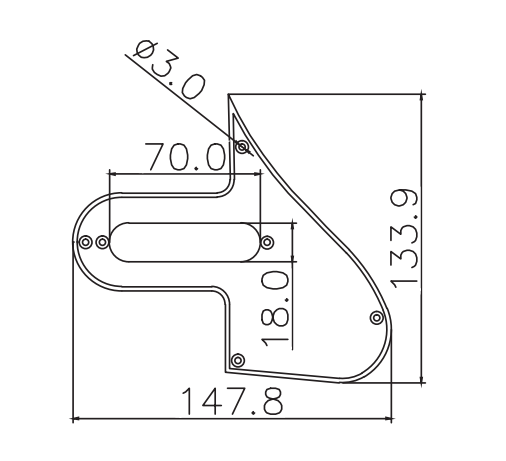

Technical drawingTH-005
Description

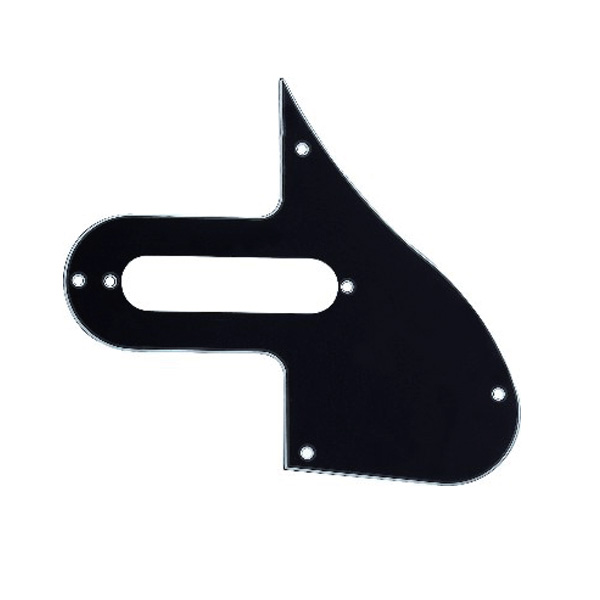

TH-005 mandolin pickguard, 147.8 × 133.9 mm L-shaped plate with pickup slot and φ3 mm mounting holes on 70 mm centers.
Pickguard specs
- Overall width 147.8 mm (5.819 in)
- Overall length 133.9 mm (5.272 in)
- Mount hole diameter φ3 mm
- Mount spacing 70 mm (2.756 in)
- Layout reference Pickup-slot flanking holes on 70 mm centers; additional φ3 mm perimeter holes (spacing not dimensioned on drawing).
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- L-shaped outline 147.8 mm × 133.9 mm with horizontal pickup arm
- Pickup slot cutout 18 mm high; slot-flanking holes on 70 mm centers
About measurements
- Mount hole spacing
-
70 mm (2.756 in)
Center-to-center distance between mounting holes on the bridge plate.
