TH-006

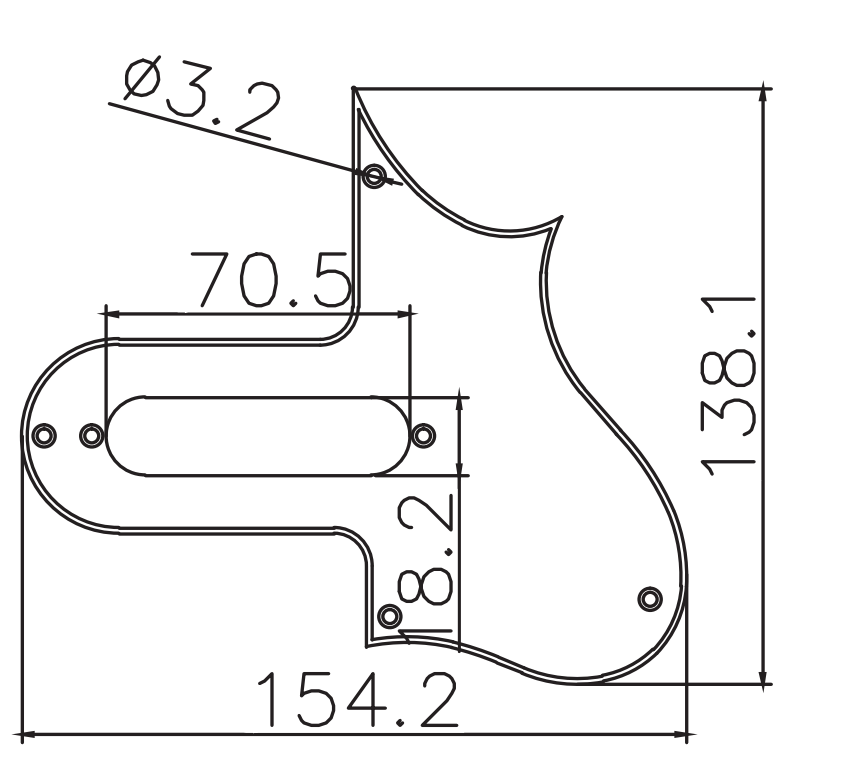

Technical drawingTH-006
Description
TH-006 mandolin pickguard, 154.2 × 138.1 mm L-shaped plate with pickup slot and φ3.2 mm mounting holes on 70.5 mm centers.
Pickguard specs
- Overall width 154.2 mm (6.071 in)
- Overall length 138.1 mm (5.437 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 70.5 mm (2.776 in)
- Layout reference Pickup-slot flanking holes on 70.5 mm centers; additional φ3.2 mm perimeter holes (spacing not dimensioned on drawing).
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- L-shaped outline 154.2 mm × 138.1 mm with horizontal pickup arm
- Pickup slot cutout 18.2 mm high; slot-flanking holes on 70.5 mm centers
About measurements
- Mount hole spacing
-
70.5 mm (2.776 in)
Center-to-center distance between mounting holes on the bridge plate.
