MANDOLIN PARTS
Request a quote → TH-014
TH-014
Technical drawingTH-014
Description

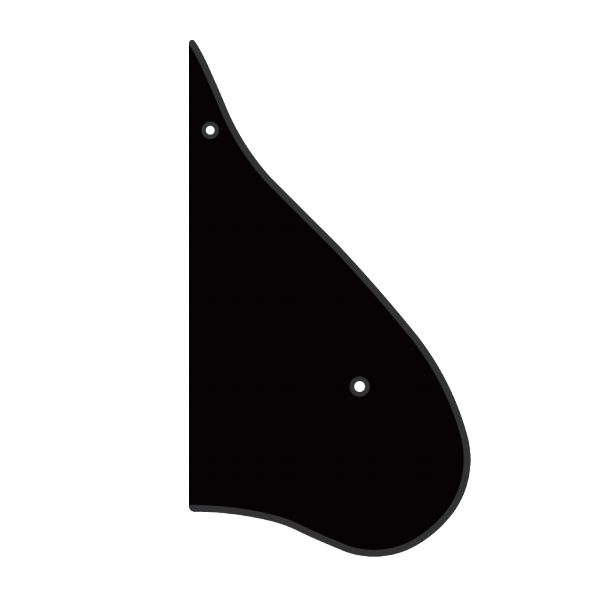

TH-014 mandolin pickguard, 84 × 154 mm teardrop outline with φ2.6 / φ3.2 mm mounting holes on 140.6 mm centers.
Pickguard specs
- Overall width 84 mm (3.307 in)
- Overall length 154 mm (6.063 in)
- Mount hole diameter φ2.6 mm
- Mount spacing 140.6 mm (5.535 in)
- Layout reference Upper mount hole φ2.6 mm; lower mount hole φ3.2 mm; vertical center-to-center spacing 140.6 mm.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Teardrop outline 84 mm × 154 mm with straight left edge
- Dual-diameter mounting holes φ2.6 mm and φ3.2 mm on 140.6 mm vertical centers
About measurements
- Mount hole spacing
-
140.6 mm (5.535 in)
Center-to-center distance between mounting holes on the bridge plate.
