ZE-1005
ZE-1005
Loading 3D model…
Loading 3D model…
Description

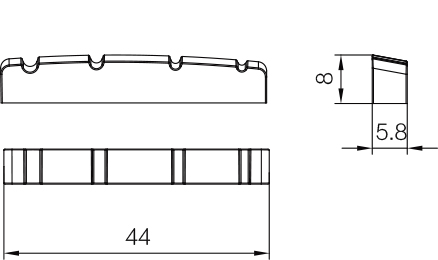

ZE-1005 is a 4-string bass nut, 44 mm overall length, 8 mm height, and 5.8 mm base thickness.
Nut specs
- String count 4-string
- Overall length 44 mm (1.732 in)
- Base thickness 5.8 mm (0.228 in)
- Overall height 8 mm (0.315 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 4 strings
- Radiused top edge with sloped side profile
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
