ZE-1006
ZE-1006
Loading 3D model…
Loading 3D model…
Description

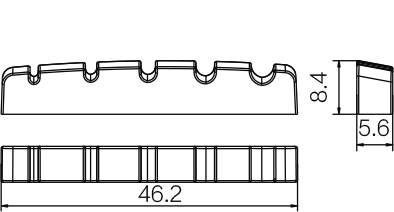

ZE-1006 is a 5-string nut, 46.2 mm overall length, 8.4 mm height, and 5.6 mm base thickness.
Nut specs
- String count 5-string
- Overall length 46.2 mm (1.819 in)
- Base thickness 5.6 mm (0.22 in)
- Overall height 8.4 mm (0.331 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 5 strings
- Curved top profile with sloped side section
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
