Description

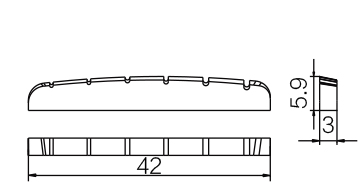

ZE-1009 is a 6-string guitar nut, 42 mm overall length, 5.9 mm height, and 3 mm base thickness.
Nut specs
- String count 6-string
- Overall length 42 mm (1.654 in)
- Base thickness 3 mm (0.118 in)
- Overall height 5.9 mm (0.232 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 6 strings
- Curved top profile with 3 mm-thick flat base
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
