Description

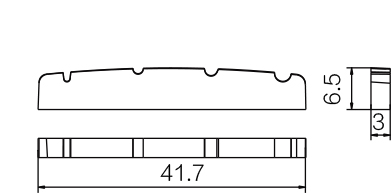

ZE-1012 is a 4-string nut, 41.7 mm overall length, 6.5 mm height, and 3 mm base thickness.
Nut specs
- String count 4-string
- Overall length 41.7 mm (1.642 in)
- Base thickness 3 mm (0.118 in)
- Overall height 6.5 mm (0.256 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 4 strings
- Arched top profile with 3 mm-thick flat base
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
