Nuts
Request a quote → ZE-1026
ZE-1026
ZE-1026
Loading 3D model…
Loading 3D model…
Description

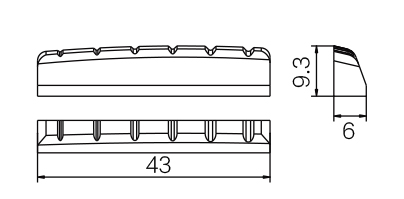

ZE-1026 6-string nut, 43 mm length, 6 mm depth, 9.3 mm height with pre-cut slots and radiused top.
Nut specs
- String count 6-string
- Overall length 43 mm (1.693 in)
- Base thickness 6 mm (0.236 in)
- Overall height 9.3 mm (0.366 in)
- Reference Glue-in nut; string spacing not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Six pre-cut string slots across 43 mm width
- Radiused top profile; 6 mm base thickness
About measurements
- Mount hole spacing
-
Glue-in nut; string spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
