BE-1001
BE-1001
Loading 3D model…
Loading 3D model…
Description

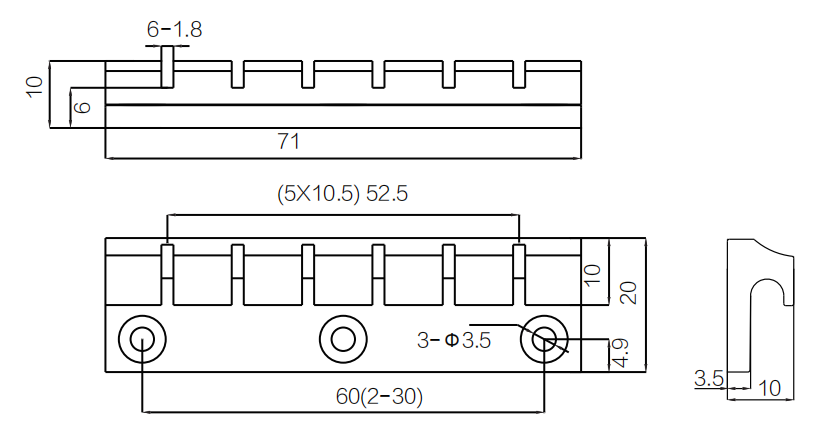

BE-1001 is a 6-string bass string guide with 10.5 mm spacing (52.5 mm spread), 71 × 20 × 10 mm body, and three-hole mount on 60 mm centers.
String guide specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Body length 71 mm (2.795 in)
- Body height 20 mm (0.787 in)
- Body depth 10 mm (0.394 in)
- Mount hole spacing 60 mm (2.362 in)
- Mount hole diameter φ3.5 mm
- Slot width 1.8 mm (0.071 in)
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Six 1.8 mm string slots
- Hook profile for body-end routing
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
60 mm (2.362 in)
Center-to-center distance between mounting holes on the bridge plate.
