Description

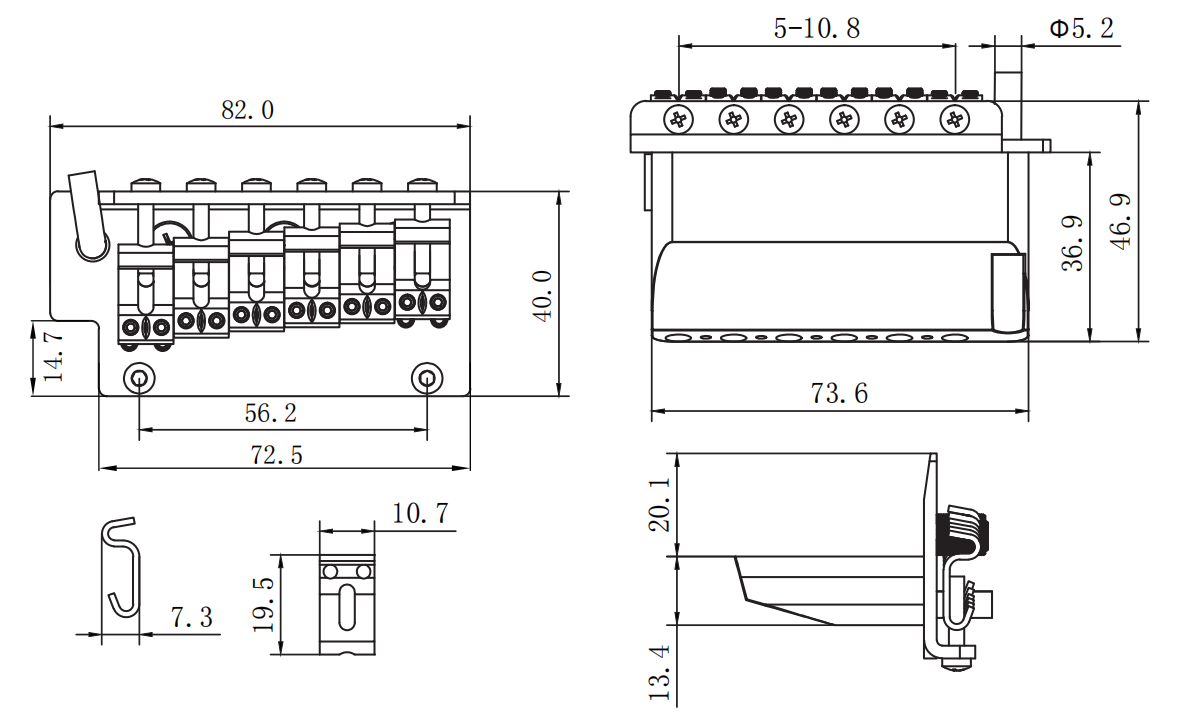

BG-1010 is a 6-string synchronized tremolo bridge with 10.8 mm spacing, 82 × 40 mm plate, 56.2 mm mount spacing, and 36.9 mm sustain block.

String count 6-string
String spacing 10.8 mm (0.425 in)
String spread 54 mm (2.126 in)
Plate width 82 mm (3.228 in)
Plate depth 40 mm (1.575 in)
Mount hole spacing 56.2 mm (2.213 in)
Saddle material Zinc alloy
Saddle diameter 10.7 mm (0.421 in)
Hole diameter φ5.2 mm (0.205 in)
Sustain block width 73.6 mm (2.898 in)

String spacing

10.8 mm (0.425 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

56.2 mm (2.213 in)

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

36.9 mm (1.453 in) block height; 73.6 mm (2.898 in) block width

Tremolo block depth sets spring tension range; verify against body cavity depth.
