Description

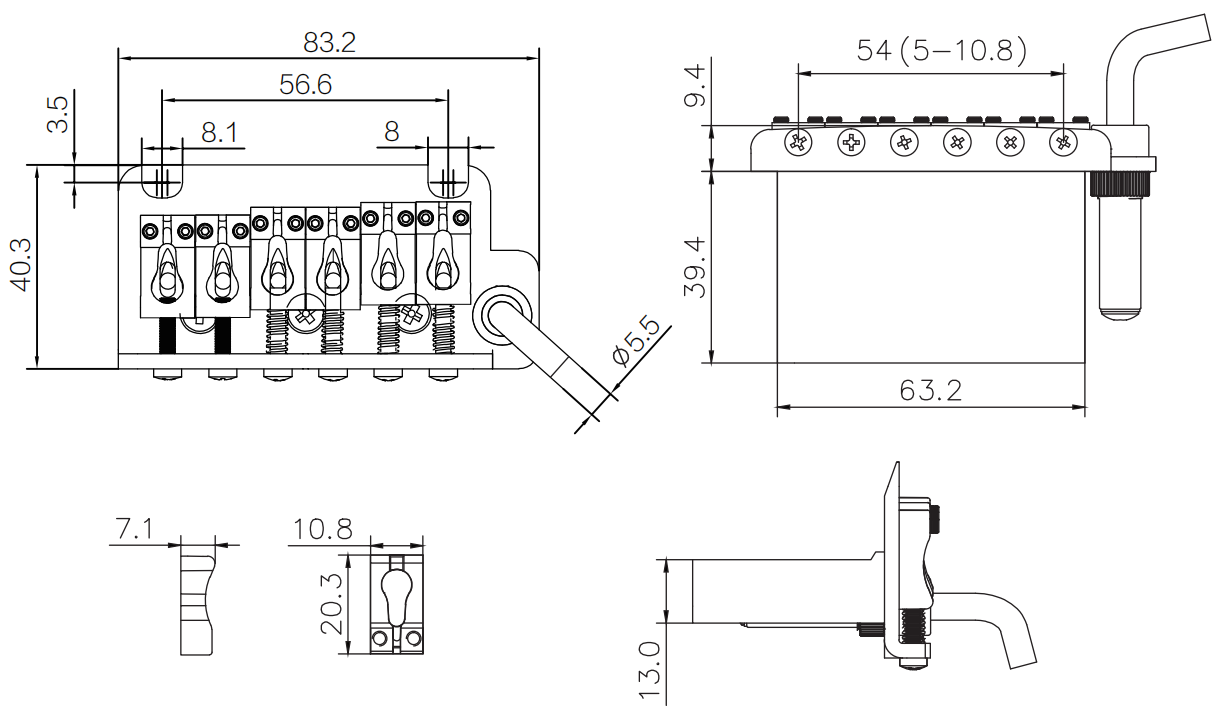

BG-1013 is a 6-string tremolo bridge with 10.8 mm spacing, 83.2 × 40.3 mm plate, 56.6 mm mount spacing, and 39.4 mm block.

String count 6-string
String spacing 10.8 mm (0.425 in)
String spread 54 mm (2.126 in)
Plate width 83.2 mm (3.276 in)
Plate depth 40.3 mm (1.587 in)
Mount hole spacing 56.6 mm (2.228 in)
Saddle material Zinc alloy
Saddle diameter 10.8 mm (0.425 in)
Hole diameter φ5.5 mm (0.217 in)
Sustain block width 63.2 mm (2.488 in)

String spacing

10.8 mm (0.425 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

56.6 mm (2.228 in)

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

39.4 mm (1.551 in) block height; 63.2 mm (2.488 in) block width

Tremolo block depth sets spring tension range; verify against body cavity depth.
