BG-5001C

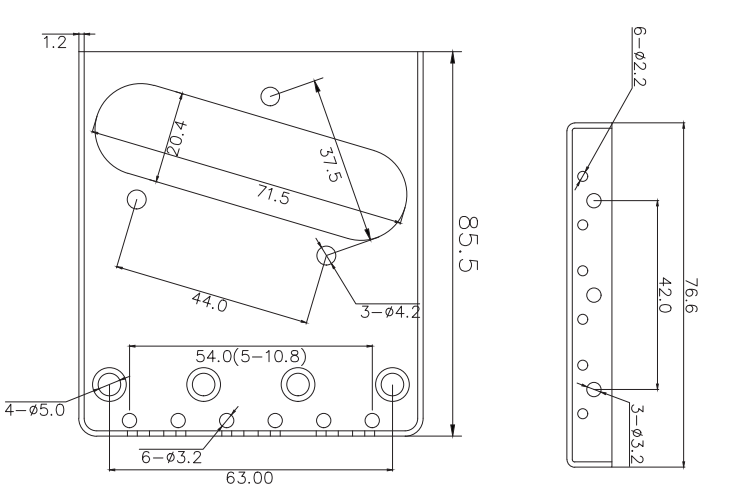

Technical drawingBG-5001C
Description
BG-5001C is a Tele bridge plate with slanted pickup rout, 10.8 mm string spacing (54 mm spread), 85.5 × 76.6 mm plate, and 63 mm base mount spacing.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 85.5 mm (3.366 in)
- Plate depth 76.6 mm (3.016 in)
- Mount hole spacing 63 mm (2.48 in)
- Mount pattern Four base mount holes φ5.0 mm; pickup cutout 71.5 × 20.4 mm; pickup holes 44 mm
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Slanted single-coil pickup cutout
- Four-hole base mount
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
63 mm (2.48 in)
Center-to-center distance between mounting holes on the bridge plate.
