Tailpieces
Request a quote → BG-6005
BG-6005
BG-6005
Loading 3D model…
Loading 3D model…
Description

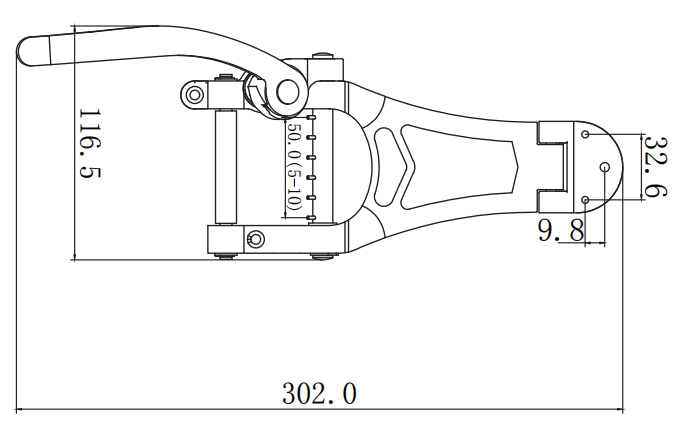

BG-6005 is a long-scale vibrato tailpiece, 302 mm overall length, 10 mm string spacing (50 mm spread), and triangular 3-hole mount.
Vibrato tailpiece specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Overall length 302 mm (11.89 in)
- Overall width 116.5 mm (4.587 in)
- Mount pattern Tail mount triangle 32.6 mm × 9.8 mm depth
Hardware
- Material Cast aluminum
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Extended vibrato arm
- Open-frame body
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Tail mount triangle 32.6 mm × 9.8 mm depth
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the tailpiece.
