Tailpieces
Request a quote → BG-6008
BG-6008
BG-6008
Loading 3D model…
Loading 3D model…
Description

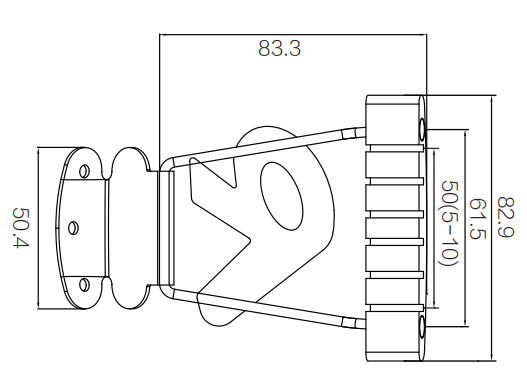

BG-6008 is a logo-cut trapeze tailpiece, 83.3 mm long, 10 mm spacing (50 mm spread), and 50.4 mm hinge plate.
Tailpiece specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Overall length 83.3 mm (3.28 in)
- Overall width 82.9 mm (3.264 in)
- Mount spacing 61.5 mm (2.421 in)
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Decorative frame cutout
- Hinged rim mount
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
61.5 mm (2.421 in)
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the tailpiece.
