BANJO PARTS
Request a quote → BJ-220
BJ-220
BJ-220
Loading 3D model…
Loading 3D model…
Description

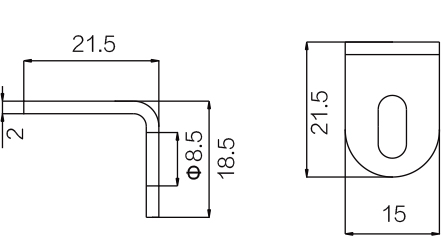

L-shaped end-pin jack bracket 21.5 × 21.5 mm body, 18.5 mm deep with Φ8.5 mm hole and 15 mm slot.
Banjo hardware specs
- Overall width 21.5 mm (0.846 in)
- Overall length 18.5 mm (0.728 in)
- Body height 21.5 mm (0.846 in)
- Hole diameter φ8.5 mm
- Reference Slot width 15 mm; flange thickness 2 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- L-shaped bracket for end-pin jack routing
- Φ8.5 mm circular hole on vertical leg
- Elongated slot on horizontal leg
About measurements
- Mount hole spacing
-
Slot width 15 mm; flange thickness 2 mm
Center-to-center distance between mounting holes on the bridge plate.
