BANJO PARTS
Request a quote → BJ-220B
BJ-220B

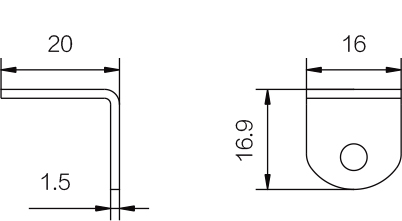

Technical drawingBJ-220B
Description
Compact L-shaped end-pin bracket 20 mm wide, 16.9 mm tall, 16 mm front width and 1.5 mm stock thickness.
Banjo hardware specs
- Overall width 20 mm (0.787 in)
- Body height 16.9 mm (0.665 in)
- Reference Front face width 16 mm; stock thickness 1.5 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact L-profile for tight jack routes
- Rounded end with center hole
- 1.5 mm thin-gauge stock
About measurements
- Mount hole spacing
-
Front face width 16 mm; stock thickness 1.5 mm
Center-to-center distance between mounting holes on the bridge plate.
