Knobs
Request a quote → C-1015
C-1015
C-1015
Loading 3D model…
Loading 3D model…
Description

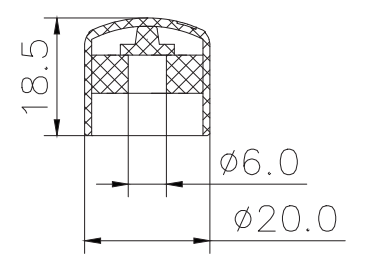

Domed knob Φ20.0 mm × 18.5 mm with a Φ6.0 mm shaft bore.
Knob / cap specs
- Outer diameter φ20 mm
- Body height 18.5 mm (0.728 in)
- Overall height 18.5 mm (0.728 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Slightly domed top
- Internal shaft-mount structure
