Knobs
Request a quote → C-1016
C-1016
C-1016
Loading 3D model…
Loading 3D model…
Description

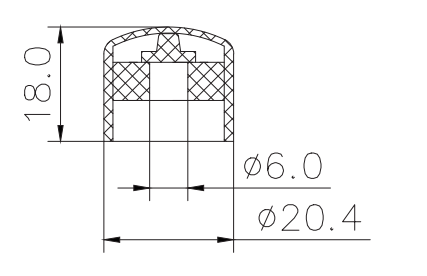

Domed knob Φ20.4 mm × 18.0 mm with a Φ6.0 mm shaft bore.
Knob / cap specs
- Outer diameter φ20.4 mm
- Body height 18 mm (0.709 in)
- Overall height 18 mm (0.709 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Slightly domed top
- Internal shaft-mount structure
