Description

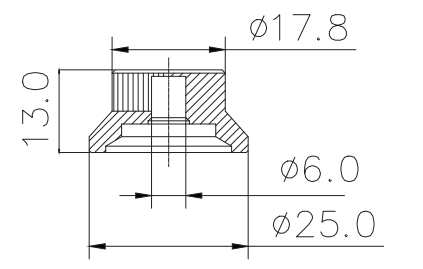

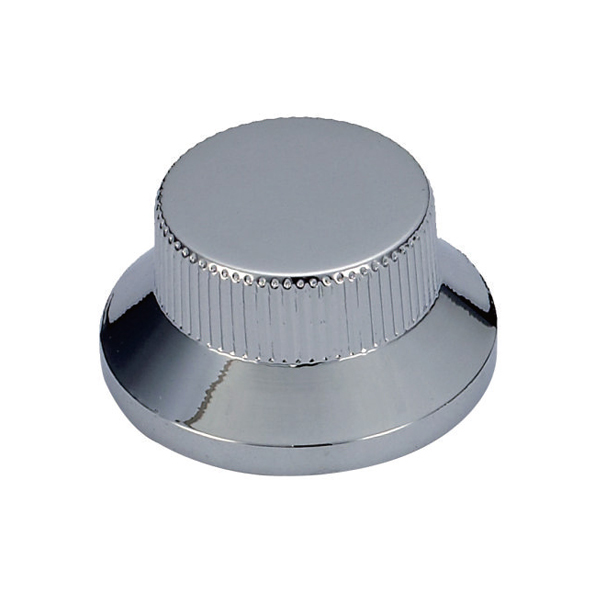

Bell-style knob Φ25.0 mm base × 13.0 mm with Φ17.8 mm top and Φ6.0 mm shaft bore.
Knob / cap specs
- Outer diameter φ25 mm
- Body height 13 mm (0.512 in)
- Overall height 13 mm (0.512 in)
- Hole diameter φ6 mm
- Reference Top section Φ17.8 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with cylindrical top
- Stepped hollow interior
About measurements
- Mount hole spacing
-
Top section Φ17.8 mm
Center-to-center distance between mounting holes on the bridge plate.
