Knobs
Request a quote → C-1018
C-1018
C-1018
Loading 3D model…
Loading 3D model…
Description

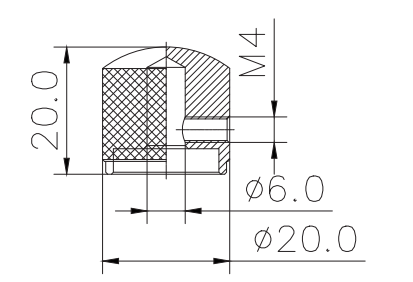

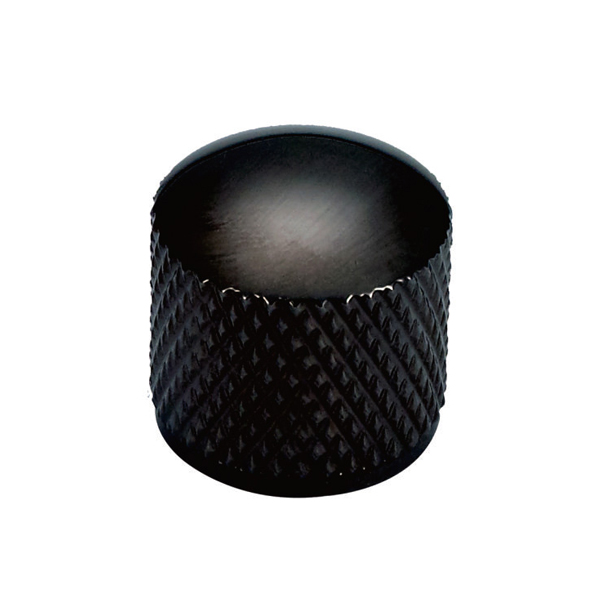

Knurled domed knob Φ20.0 mm × 20.0 mm with a Φ6.0 mm shaft bore and M4 side set screw.
Knob / cap specs
- Outer diameter φ20 mm
- Inner diameter φ6 mm
- Body height 20 mm (0.787 in)
- Overall height 20 mm (0.787 in)
- Thread M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled exterior surface
- Domed top with side M4 set screw
