Knobs
Request a quote → C-1019
C-1019
C-1019
Loading 3D model…
Loading 3D model…
Description

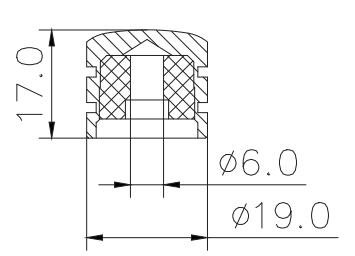

Domed knob Φ19.0 mm × 17.0 mm with a Φ6.0 mm shaft bore.
Knob / cap specs
- Outer diameter φ19 mm
- Body height 17 mm (0.669 in)
- Overall height 17 mm (0.669 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Three horizontal outer grooves
- Domed top with internal insert
