C-1020
C-1020
Loading 3D model…
Loading 3D model…
Description

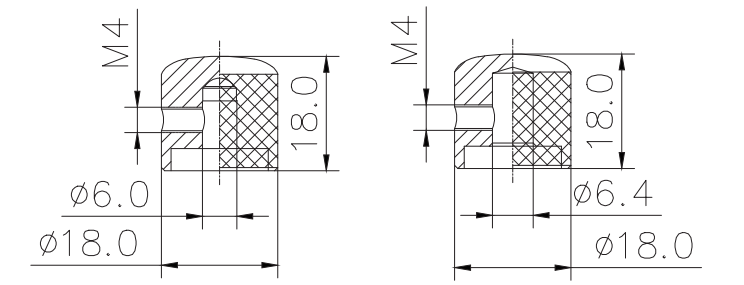

Knurled domed knob Φ18.0 mm × 18.0 mm with Φ6.0 mm (or Φ6.4 mm) shaft bore and M4 side set screw.
Knob / cap specs
- Outer diameter φ18 mm
- Inner diameter φ6 mm
- Body height 18 mm (0.709 in)
- Overall height 18 mm (0.709 in)
- Thread M4
- Reference Drawing shows alternate Φ6.4 mm shaft bore
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled exterior with domed top
- Side-mounted M4 set screw with recessed base
About measurements
- Mount hole spacing
-
Drawing shows alternate Φ6.4 mm shaft bore
Center-to-center distance between mounting holes on the bridge plate.
